Product Overview
Whether you're designing basic components or complex structures, FreeCAD gives you the tools to bring your ideas to life. There are no licensing costs involved, although you may find that the learning curve is a bit more challenging than that of some commercial alternatives. Discover what FreeCAD can do by downloading it for free.

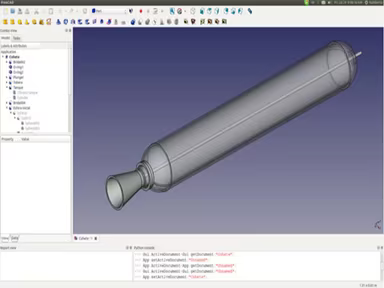

Product Snapshot
Product Details
Overview of FreeCAD

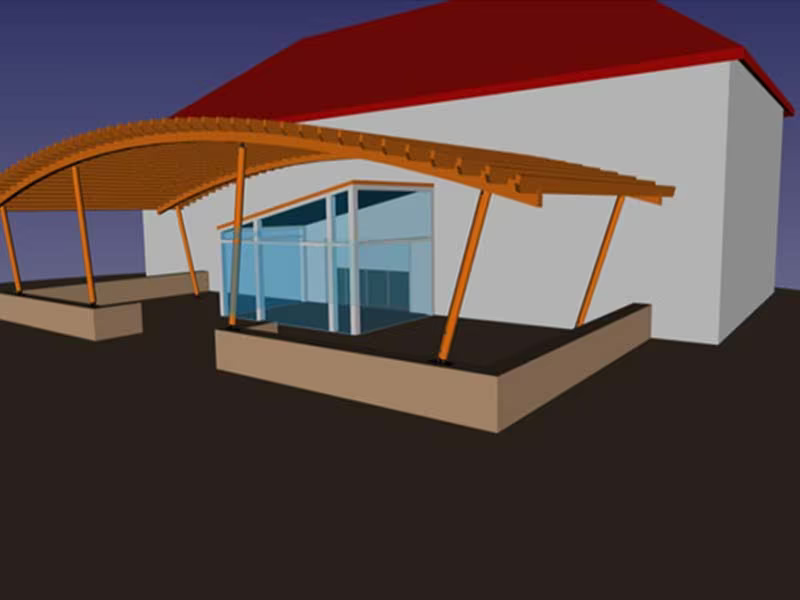

FreeCAD is equipped with a multitude of components that enable organizations to extract design data from 3D models and adjust dimensions to create production drawings. The software supports various file formats, including IGES, SVG, DXF, DE, IFC, STL, STEP, and OBJ. Its Arch module also facilitates building information modeling (BIM) processes for architectural elements such as roofs, windows, pipes, walls, beams, and furniture.
With FreeCAD, managers can create shapes like boxes, cylinders, and spheres by applying the necessary geometric constraints. The technical drawing module offers detailed and cross-sectional views, allowing companies to generate 2D representations of existing 3D models.
Key Features of FreeCAD
Simplifying the Design Workflow
FreeCAD utilizes a parametric modeling approach that lets you design objects based on other models or specific attributes. It maintains a model history that enables you to track modifications made to specifications. The graphical user interface is built on the Qt framework, and it uses an Open Inventor-based 3D viewer for quick and easy management of three-dimensional environments.
Customizable Dashboard
The dashboard and workbenches are thoughtfully arranged and customizable. You have the option to choose which tools to display. Its built-in Python Interpreter and open API simplify the management of interfaces, geometry, and renderers. Thanks to Open CASCADE technology, FreeCAD now accommodates advanced design specifications for complex structures like breps, surfaces, and nurbs.
Flexible and Modular
FreeCAD features a modular architecture that allows it to be tailored according to your current needs. You can enhance its functionality with plugins. Additionally, its Python Interpreter along with external scripts and macros can be utilized to configure and expand its capabilities.
Pricing for FreeCAD
The software is available for free, and there is no specific pricing model listed on its website.
FreeCAD Demo Availability
Demos are invaluable for giving potential users insight into a software’s functionalities. FreeCAD provides a free demo that can be scheduled at the user's convenience. This allows individuals to assess whether they wish to invest in the software.
User Reviews of FreeCAD
According to user feedback, this version stands out compared to other AutoCAD products. One of its most remarkable features is the ability to create three-dimensional drawings from various projection angles. Both students and professionals find this program beneficial.
Final Thoughts
Based on the information presented above, it can be concluded that FreeCAD empowers users to design complex objects with numerous specifications. As a design platform, it caters to both small and large enterprises. FreeCAD can evolve into a scriptable CAD solution for engineering tasks, enabling sophisticated designs such as electrical schematics and architectural blueprints. Moreover, it boasts high compatibility as it works seamlessly on Mac, Windows, and Linux operating systems.
